Polyvinyl Chloride (PVC) geomembranes are synthetic liners widely used in various industries to manage fluid containment and environmental protection. Known for their flexibility, durability, and cost-effectiveness, PVC geomembrane have become a preferred choice for applications in construction, agriculture, waste management, and more. This article delves into the essential aspects of PVC geomembranes, exploring their composition, advantages, applications, and installation processes.

What Are PVC Geomembrane?

PVC geomembranes are thin, impermeable sheets made from polyvinyl chloride resin, combined with plasticizers and stabilizers to enhance flexibility and resistance to environmental factors. These liners are manufactured in varying thicknesses and dimensions to suit specific project requirements. Their primary function is to act as a barrier, preventing the leakage of liquids, gases, or contaminants into surrounding areas.

Key Features of PVC Geomembrane

1. Flexibility
   • PVC geomembranes can conform to irregular surfaces, making them ideal for applications involving uneven terrains.
2. Durability
   • They are resistant to UV radiation, chemicals, and environmental stress, ensuring long-term performance.
3. Low Permeability
   • PVC geomembranes provide excellent impermeability, effectively containing fluids and preventing seepage.
4. Cost-Effective
   • Compared to other liner materials, PVC geomembranes offer a cost-efficient solution without compromising quality.
5. Ease of Installation
   • Lightweight and flexible, these liners are simple to transport and install, reducing labor and time costs.

Common Applications of PVC Geomembrane

PVC geomembranes are used across diverse industries due to their versatility. Some common applications include:

1. Environmental Protection

• Landfill Liners: Prevent leachate from contaminating groundwater.
• Capping Systems: Seal waste in landfills, reducing odor and methane emissions.

2. Water Resource Management

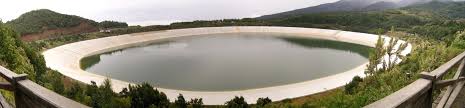

• Pond Liners: Maintain water levels in decorative, agricultural, and industrial ponds.
• Reservoirs: Store drinking water or irrigation supplies safely.
• Canals: Minimize water loss through seepage.

3. Mining and Energy

• Heap Leach Pads: Contain chemicals used in mineral extraction processes.
• Secondary Containment Systems: Prevent spills of hazardous materials like oil or chemicals.

4. Agriculture

• Manure Pits: Contain livestock waste, reducing environmental contamination.
• Aquaculture: Provide a clean and controlled environment for fish farming.

Benefits of Using PVC Geomembrane

1. Environmental Safety

PVC geomembranes play a critical role in minimizing the environmental impact of industrial and agricultural operations. Their impermeability ensures that contaminants and hazardous substances are contained effectively.

2. Longevity

Properly installed PVC geomembranes can last for decades, offering a long-term solution to fluid containment and waste management challenges.

3. Customization

Available in various thicknesses and roll sizes, PVC geomembranes can be tailored to meet the unique requirements of each project.

4. Resistance to Harsh Conditions

These liners withstand exposure to chemicals, temperature fluctuations, and mechanical stress, ensuring reliable performance even in challenging environments.

Factors to Consider When Choosing PVC Geomembrane

When selecting a PVC geomembrane for a specific project, consider the following factors:

1. Thickness: Thicker membranes provide enhanced durability and puncture resistance.
2. UV Resistance: Choose a UV-stabilized liner for outdoor applications.
3. Chemical Compatibility: Ensure the membrane can withstand exposure to chemicals involved in the project.
4. Installation Environment: Consider temperature, terrain, and other site-specific factors.

Installation Process

Proper installation is critical to ensure the performance and longevity of PVC geomembranes. Here is a step-by-step overview of the process:

1. Site Preparation

• Clear debris, rocks, and vegetation from the installation area.
• Grade and compact the surface to provide a smooth and stable base.

2. Unrolling the Membrane

• Carefully unroll the PVC geomembrane over the prepared surface.
• Allow the material to acclimate to the site temperature before positioning.

3. Seaming and Welding

• Overlap adjacent sheets and use heat welding or chemical bonding to create watertight seams.
• Perform quality checks to ensure seam integrity.

4. Anchoring and Securing

• Secure the edges of the liner using anchor trenches or other suitable methods.
• Backfill trenches to keep the membrane in place.

5. Inspection and Testing

• Conduct thorough inspections for damage or leaks.
• Perform air or vacuum tests to verify seam strength and overall impermeability.

Maintenance and Repair

Regular maintenance is essential to extend the lifespan of PVC geomembrane. Inspections should be conducted periodically to identify signs of wear, tear, or punctures. Small damages can be repaired using compatible patch materials and adhesives, ensuring the liner’s continued effectiveness.

Sustainable Use of PVC Geomembranes

PVC geomembranes contribute to sustainable practices by:

• Reducing Water Loss: In agriculture and water management systems.
• Preventing Pollution: Containing hazardous materials and protecting natural resources.
• Minimizing Waste: Their durability reduces the need for frequent replacements.

Conclusion

PVC geomembrane are a reliable, cost-effective solution for fluid containment and environmental protection across various industries. Their versatility, combined with their ease of installation and long-term performance, makes them an indispensable tool for managing resources and safeguarding ecosystems. Whether for large-scale industrial applications or small agricultural projects, PVC geomembranes offer a practical and sustainable choice for modern infrastructure and environmental challenges.
